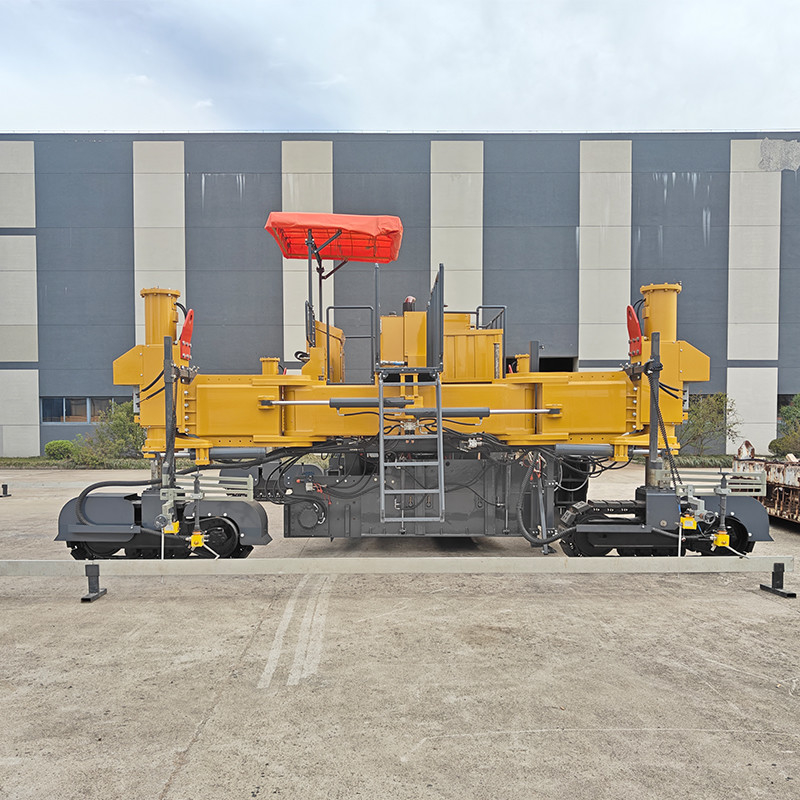

SMC - 6800 Slipform Paver: Multifunctional Cement Concrete Construction Expert
Product Introduction
he SMC - 6800 cement concrete slipform paver is a multifunctional cement concrete construction equipment independently developed by our company. It is widely used in various construction fields such as highways, high - speed railway subgrades, and agricultural irrigation channels. It replaces traditional processes and greatly improves the construction quality and speed of the above - mentioned cement concrete structures.
This machine has a large power reserve, fully electronic control, fully hydraulic power drive, four - track traveling, equipped with automatic steering and automatic leveling control systems, and can complete the processes of material separation, vibration, paving, forming, slurry extraction, and plastering of cement concrete structures in one go.
Functional Advantages:
Power System
Water - cooled engine + parallel - flow three - way radiator form a “cooling strike team”. Forced air - cooling boosts efficiency, 24 - hour non - stop operation without “breaking down”. Breaks the “overheating curse” of long - term work!
Hydraulic System
1. Four pump load sense hydraulic system from well-known international brands.
2. The inlet and outlet ports of the pump are equipped with high quality filters.
Vibration Compaction System
Military - grade square - head hydraulic vibration core, 16 + 6 - channel variable - frequency “pulse vibration”, 0 - 167Hz precise frequency modulation. It’s like giving concrete a “deep massage”, maximizing aggregate compactness!
Electronic Control system
The main console features an “intelligent central brain” with colorful graphical interaction + instant fault diagnosis. Steering / grade auto - calibration, sensors “cooperate via CAN - bus”, keeping construction parameters rock - solid!
Traveling Device
Four - track “hydraulic tank tracks”, handling heavy - load construction smoothly. Load - sensing drive keeps the system “cool - working”, no temper tantrums in high temps. Solves complex terrain “incompatibility”!
concrete spreading system
Dual - hydraulic auger “intelligent material - homogenizing arms”, instantly turning irregular dump piles into uniform paving layers. Stepless speed regulation tames any messy material piles, the ultimate cure for construction “obsessiveness”!
Water System
1. Type: High pressure washer with water gun.
2. One Standard water tank capacity is 400L,four 130L tanks option.
Tie Bar inserter(Option)
1.Equipped multiple tie bar inserter on both sidesand in the middle.
2.They can be operated automatically and manually.
Oscillating Beam(Option)
1.Hydraulic driven stepless frequency regulation.
2.Automatically improve the concrete surface In caseof paver stoppages.
Super $moother(Option)
1.Hydraulic driven stepless frequency regulation.
2.Provide the final finish for superior rideability of road.
DBl Inserter(Option)
1.Capable of adapting to many specifications of dowel sbars to meet various engineering needs.
2.Equipped with automatic and manual control modes,and a synchronous unstertion system.
Technical Parameters
| Paving Width |
3500-8500 mm |
| Paving Thickness |
100-480 mm |
| Smoothness |
±3 (mm/3m) |
| Paving Speed |
0-6 m/min |
| Speed |
0-1.1 km/h |
| Vibrating Circuits |
24 |
| Vibrating Frequency |
0-167 Hz |
| Diesel Tank |
370 L |
| Water Tank |
400 L(standard)+140L*4(optional) |
| Total length |
13740/9640 mm(transportation/work) |
| Width |
2800/7300 mm(transportation/work) |
| Height |
3220/4300 mm(transportation/work) |
| Engine Model |
SC7H240 G4 |
| Power |
177 Kw@2200rpm |
| Emission |
stage 4
|
