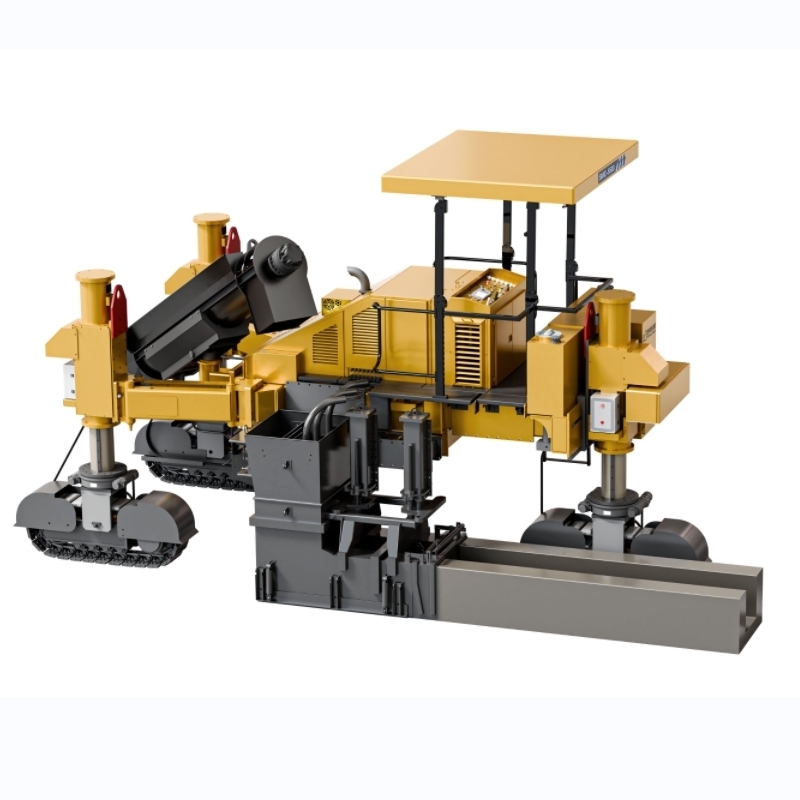

SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

Einzelheiten zum Produkt

Herkunftsort: Jiangsu, China

Markenname: Siming

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1

Preis: US$234,000

Erhalten Sie besten Preis

Einzelheiten zum Produkt

Beschreibung des Produkts

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMC-5500 slipform paver with warranty, 15000kg slipform paver new, slipform paver 3-year engine warranty


Gewicht:	15000 KG	Pflasthöhe:	0-1800mm
Einbaubreite:	0-2500 mm	Fahrgeschwindigkeit:	0 bis 33 m/min
Einbaugeschwindigkeit:	0-8m/min	Ebenheit:	± 3 mm/3m
Vibratormarke:	Wyco	Vibrator -Schnittstelle:	8
Vibratorfrequenz:	0-167 HZ	Kraftstofftank:	230L (Standard)+120L (optional)
Wassertank:	500L	Motor:	Shangchai SC4H160G4
Ratenmacht:	118 kW/2200 Rpm	Emissionsstandard:	Phase ⅳ
Transportgröße:	700022502860 mm

Gewicht:	15000 KG
Pflasthöhe:	0-1800mm
Einbaubreite:	0-2500 mm
Fahrgeschwindigkeit:	0 bis 33 m/min
Einbaugeschwindigkeit:	0-8m/min
Ebenheit:	± 3 mm/3m
Vibratormarke:	Wyco
Vibrator -Schnittstelle:	8
Vibratorfrequenz:	0-167 HZ
Kraftstofftank:	230L (Standard)+120L (optional)
Wassertank:	500L
Motor:	Shangchai SC4H160G4
Ratenmacht:	118 kW/2200 Rpm
Emissionsstandard:	Phase ⅳ
Transportgröße:	700022502860 mm

SMC-5500 Slipform Paver New 15000kg with 3-Year Engine Warranty

SMC-5500 Intelligent Slipform Paver

New condition core component engine with three tracks concrete spreader designed for professional construction applications.

Key Specifications

Attribute	Value
Core Components	Engine, hydraulic pump, vibrating spear
Weight	15000 kg
Warranty	1 Year (3 years for core components)
Unique Feature	Short turning radius
Paving Dimensions	Height: 0-1800mm, Width: 0-2500mm
Speed	Driving: 0-33 m/min, Paving: 0-8m/min
Applicable Industries	Highway, Tunnel roadbed, Ditch construction

Application Conditions

Designed for various construction fields including:

Highway and municipal road construction: curb, central isolation belt, anti-collision wall, slope protection, drainage ditch, cement pavement
Railway construction: retaining wall, drainage ditch
Agriculture and water conservancy: anti-seepage channels, slope protection and pavement hardening

Paving width

0-2500 mm

Paving height

0-1800mm

Flatness

±3 mm/3m

Engine

Shangchai SC4H160G4 (118Kw/2200rpm, Phase IV emission standard)

Transport dimensions

7000*2250*2860 mm

Functional Features

Optimized operator platform: Clear layout with rapid control response for efficient operation
Energy efficient system: Eco mode automatically matches optimal working state for reduced emissions
High-performance vibration: WYCo square shell vibrator with 8 vibration oil roads (expandable to 10)
Precision control: International brand servo valve for smooth column lifting and excellent flatness
Flexible track system: Adjustable crawler columns with swing arms for mold position flexibility
Multiple steering modes: Forward, crab, cooperative and spot steering for superior maneuverability
Large-angle track rotation: ±130° steering angle for efficient positioning and transitions
Smooth operation: High-speed ratio reducer with international brand hydraulic motor
Compact transport: Electrically foldable roof for economical truck transportation
